Vince Briel’s Replica 1 10th Anniversary limited edition boards have sold out, but the same design is available now as the ‘Replica 1 Plus’. The only things that are different on this board are the color (green vs. red) and the silk-screened name. The Replica 1 Plus is available assembled for USD $199, or as a kit for USD $149 plus shipping.

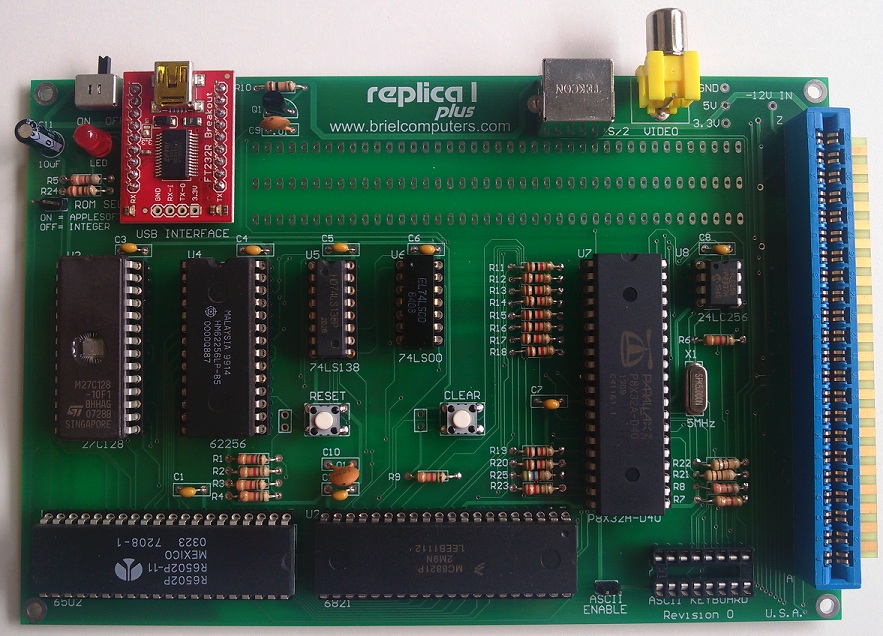

replica1plus_med

The plus has improvements over the TE that make programming and power issues a thing of the past. Now you can power your replica 1 right off your PC or Mac or Tablet with the USB interface. With drivers installed, you can use a terminal program for sending/receiving programs or just use the terminal interface as your display and keyboard if you want. For those who prefer the stand alone feature, you can still use a composite monitor or TV and PS/2 keyboard. The ASCII keyboard port has been retained but for Apple II keyboards, a -12V supply or a Super Encoder board enhanced Apple II keyboard is required. Firmware changes now allow backspace or the original _ to be used just by selecting CTRL and F1. No more fighting backspace issues. Two versions of ROM’s onboard to select from! Yes, the original apple 1 with BASIC and now the Woz monitor and Applesoft lite can be used by adding a jumper! Enjoy floating point BASIC ported from the Apple II.

EXTRA GOOD NEWS! Look for an announcement soon on how you can assemble your own Replica 1 Plus kit under Vince’s guidance at a KansasFest 2014 workshop!
