Anthony Martino and Henry Courbis are about to offer for sale several new products. First up is the new ‘8 MEG RAM CARD v2.0′ for the Apple IIGS that is switch selectable between 4MB-8MB in 1MB increments, making it fully compatible with both the ROM 01 and ROM 3 Apple IIGS. We’re anticipating being able to review this card very soon, so stay tuned for updates. Pricing has not yet been disclosed but availability should be only a few weeks away.

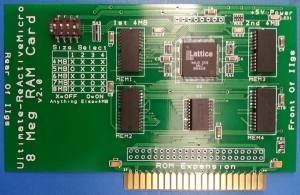

Just built and testing the first few 8 Meg RAM Cards (see pic). What makes this card unique and the best solution out there for your IIgs memory needs? Well I’m glad you asked!
The Ultimate-ReActiveMicro 8 Meg RAM Card features Gold Fingers for superior oxidation prevention and long life.
Tantalum and Ceramic capacitors for longer life (4x minimum), extreme reliability, and they are very stable over time especially when compared to aluminum electrolytic capacitors.
A resettable Fuse for short-circuit protection and to help prevent Tantalum Capacitor thermal runaway.
ROM Expansion/Direct Access for future projects.
DRAM Address Termination.
Full Power Decoupling and Filtering for ALL chips.
Power LED to show the board is receiving power and the Fuse is functioning correctly.
And of course what project is complete without a blinky LED? We have TWO DRAM LEDs to show access and functionality! One LED for each bank of 4 Megs.
As you can see from the pic we also did away with the jumper and used a simple to understand DIP Switch along with adding the legend on the board so it can’t be lost.
Some may wonder why we used a CPLD yet kept the 74F245. Yes we could have added the logic to the CPLD however the 74F245 is meant to drive a higher TTL load (the data bus) than a CPLD. So although it would technically work it’s not good practice. This is also why we used DRAM Address Termination – to reduce ringing and related signal issues, and is just good design work.
Apple //e users and other 8bit fans won’t be left behind. Got RAM? Also coming are cloned versions of the Applied Engineering RAMWorks 2MB expansion and RAMFactor 4MB expansion cards. Expect a much improved No-Slot-Clock with user replaceable battery as well!
From James Littlejohn, offered exclusively through UltimateApple2 will be the new ‘LittlePower Flip’. The new LittlePower Flip is an improved design, essentially combining the previous LittlePower IIGS, IIe and II+ (three separate adapters!) into a single ‘flippable’ super adapter. The Flip will be perfect for quickly testing those dodgy power supplies, motherboards or even when used as a permanent part of your Apple II computer’s power solution.
